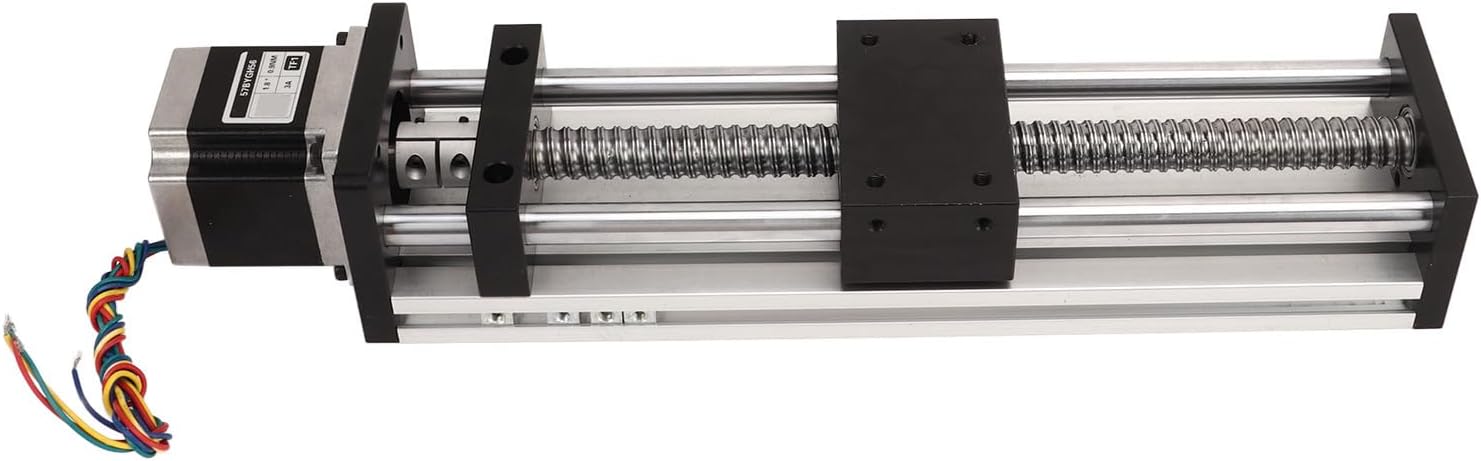

Linear Stage Actuator Double Optical Axes Rail Slide 200mm Stroke Ball Screw CNC Motion Module

Specification: Item Type: Linear Stage Actuator Maximum Load: Horizontal: ≤30KG; Vertical: ≤20KG Highest Accuracy: Positioning Accuracy: ≥0.03mm Width: Approx. 80mm / 3.15in Maximum Stroke: Approx. 200mm / 7.87in Screw Diameter: Approx. 16mm / 0.63in(1605) Main Function: Convert rotational motion into linear motion, or convert torsion into axial repeated force Use With: Cross type, T type, I type, gantry type, double axes, three axes, four axes How to Use: Install and use directly. Package List: 1 x Slide Table

• TECHNICAL PARAMETERS: Linear stage actuator is made of aluminum alloy with effective stroke of 200mm, maximum horizontal load capacity of 30kg and maximum vertical load of 20kg

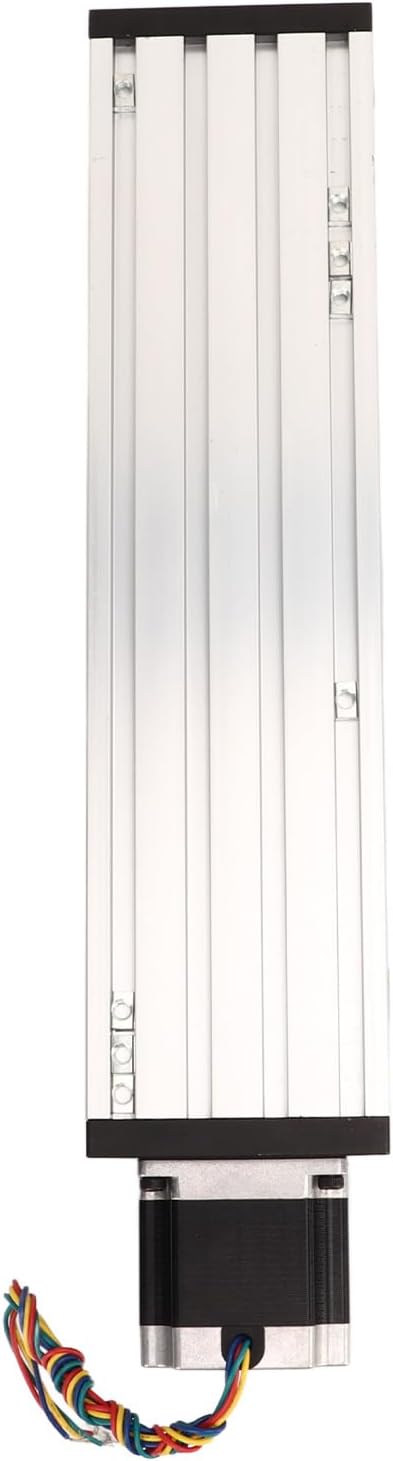

• STANDARD M5 MOUNTING HOLES: M5 movable nuts on the sides and bottom the installation of the sliding table more flexible
• SMOOTH AND ACCURATE: Linear slide stage is high speed tilt, support smooth . 1605 ball screw, possess up to 0.03mm
• APPLICABLE SCENARIO: This slide stage is widely used in industrial machine tools, such as milling machines, lathes, grinding machines and so on
• APPLICABLE MODEL: This sliding table can be used with cross type, T type, I type, gantry type, double axes, three axes, four axes
