LBY .157" x 2.36" x 7.87" Copper Ground Bar Kit, with 10 Terminal Positions, Copper Grounding Busbar Bar Kit

LBY .157" x 2.36" x 7.87" Wall Mounted Copper Ground Bar Kit ● Product: - 200×60×50mm - Material: copper, stainless steel,resin. - Main Color:yellow,red,silver. ● Package: - 200×60×50mm - 1 set ● Description: - Copper ground bar . Made of high conductivity copper to inhibit corrosion. - Wall mounted copper ground bar kit enables multiple ground points to be connected quickly and easily. - Comes pre-assembled with brackets and insulators attached for quick installation. - Widely used in high low power distribution cabinet.For power distribution, transmission, fixing copperor copper busbar, etc. ● Note: - Please check the product specifications and parametersto confirm that you need to purchase. - Product implementation standards: GB/T5585-85

• 1.Copper ground bar kit, .157" x 2.36" x 7.87" (4×60×200mm) copper grounding busbar.
• 2.Material: copper, stainless steel, resin; Colour: yellow, red, silver.
• 3.Size :200×60×50mm;total length:200mm(7.87''),width:60mm(2.36''), height:50mm(.97''),copper plate thickness: 4mm (.157 '')

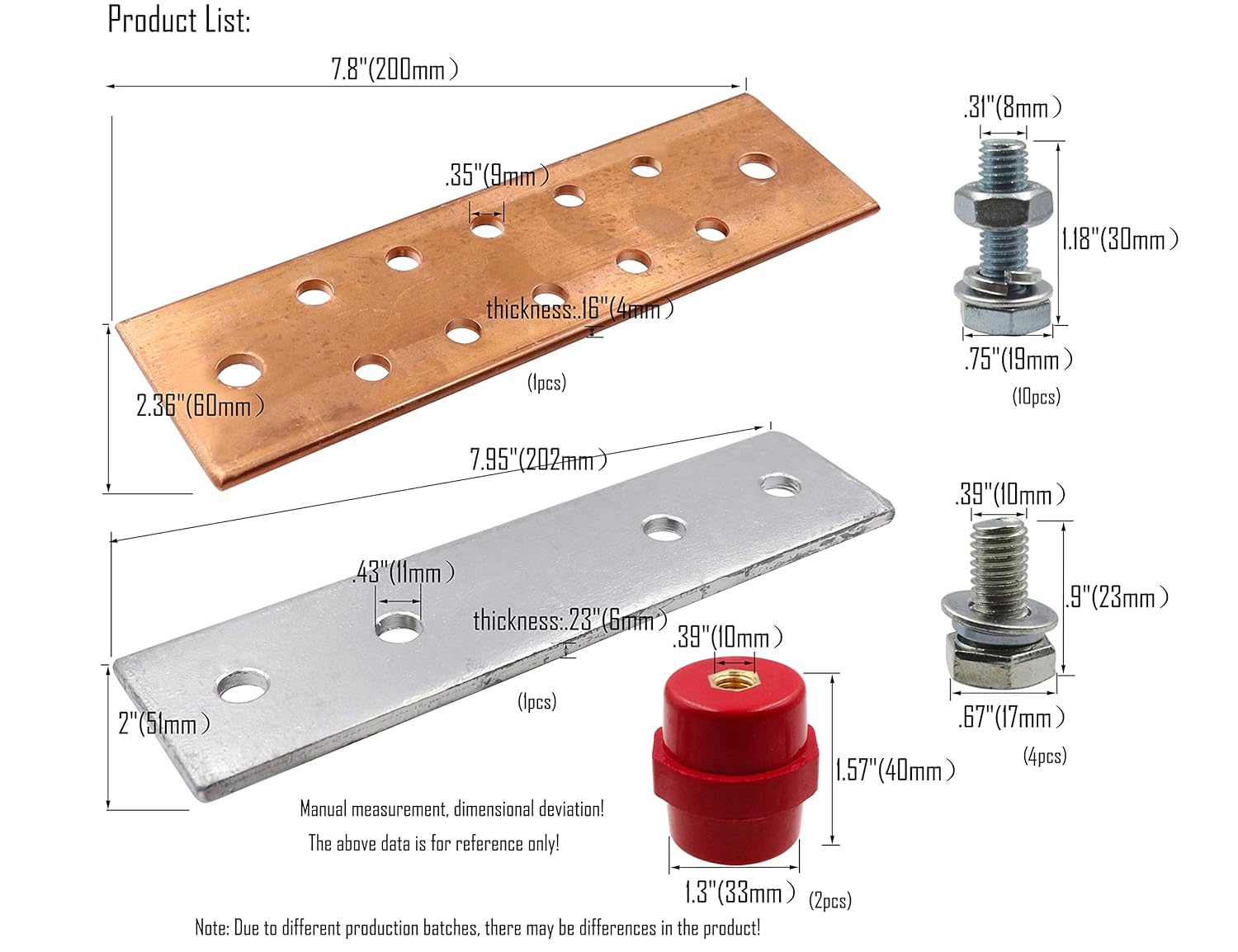

• 4.Contains: 1 set, Includes one copper plate, one hot galvanized steel sheet, two insulators, 16 galvanizing screws.
• 5.Use: widely used in high low power distribution cabinet.For power distribution, transmission, fixing copperor copper busbar, etc, play the role of minsulation and connection.
