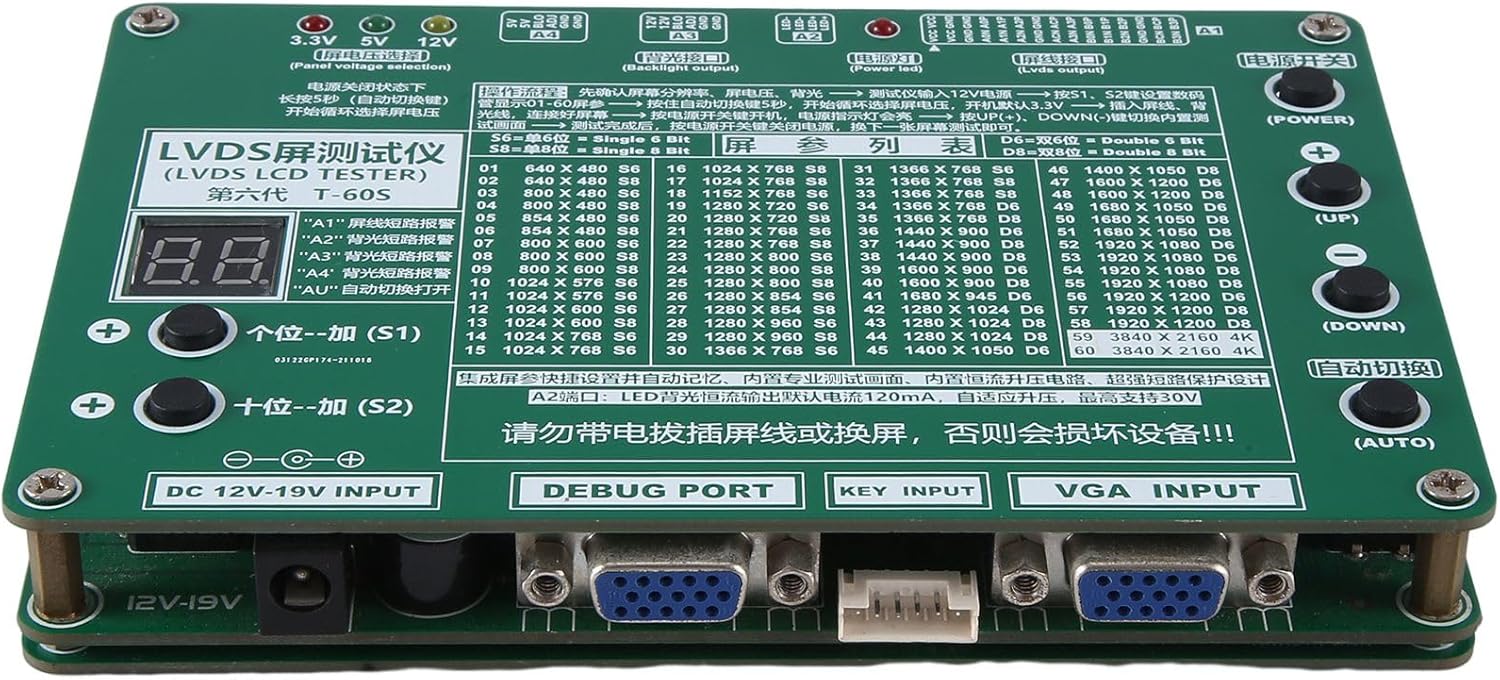

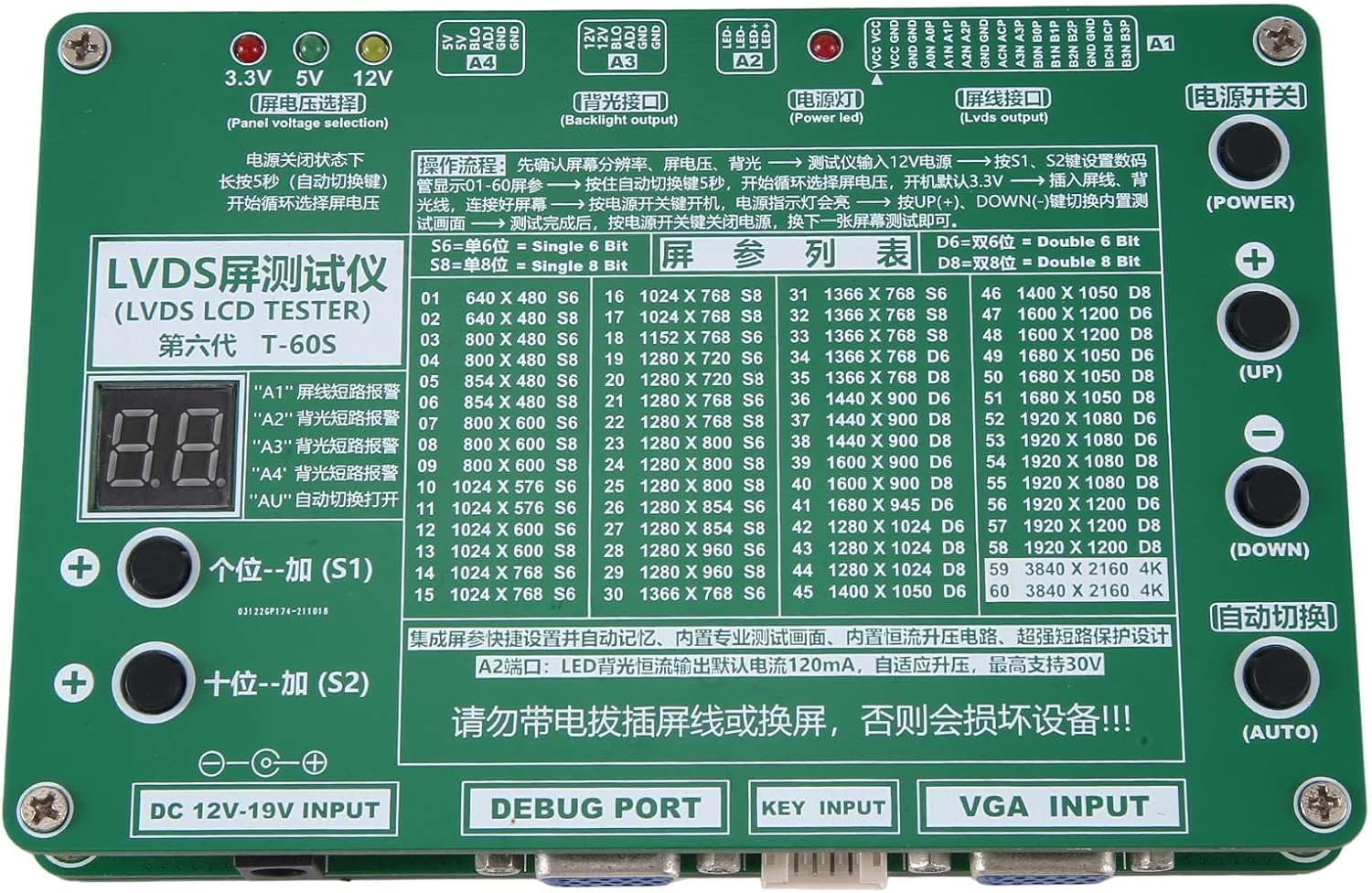

Laptop Computer TV LCD LED Test Tool KIT Set Panel Tester Kit Screen Tester Kit for Repair Screen Monitor Display with 14 PCS LVDS Cable
4.3 (128 items)
Limited Time SaleUS$68.30 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218498159 | Release Date | 2026/05/03 | List Price | US$45.53 | Model Number | 218498159 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Laptop Computer TV LCD LED TEST TOOL KIT SET Panel Tester Kit Screen Tester Kit for Repair Screen Monitor Display with 14 PCS LVDS Cable
- How to Use the panel tool as Below: 1. Please make sure your Panel Resoultion Power for the Panel and Backlight that you need to Test. such as LTN170X2-L02 we Need to Know the Resolution 1440x900 6bits 30pin Double LVDS cable and the power is 3.3V supply
- 3. S1 or S2 set The resolution such as the 1440*900 you need to set the display on 36
- 2. Connect the Power to the Panel tester the power input is 12V-3A or 12V-5A port 2.5MM and 5.5MM inner + outside -
- 4. Choose the Panel supply Voltage the Auto for 5 seconds .if you panel is 3.3V then you not need to Choose
- 5. Connect the LVDS cable and the Backlight Line. the power then the LED Light. the Up or Down test the Panel .After test finished Power off
| Color | One Color |
|---|---|
| Model | CQJRGF |
| Brand Name | CQJRGF |
| Unit Count | 1.0 Count |
| Item Weight | 50 Grams |
| Part Number | CQJRGF |
| Manufacturer | CQJRGF |
| Item Dimensions | 1 x 1 x 1 inches |
