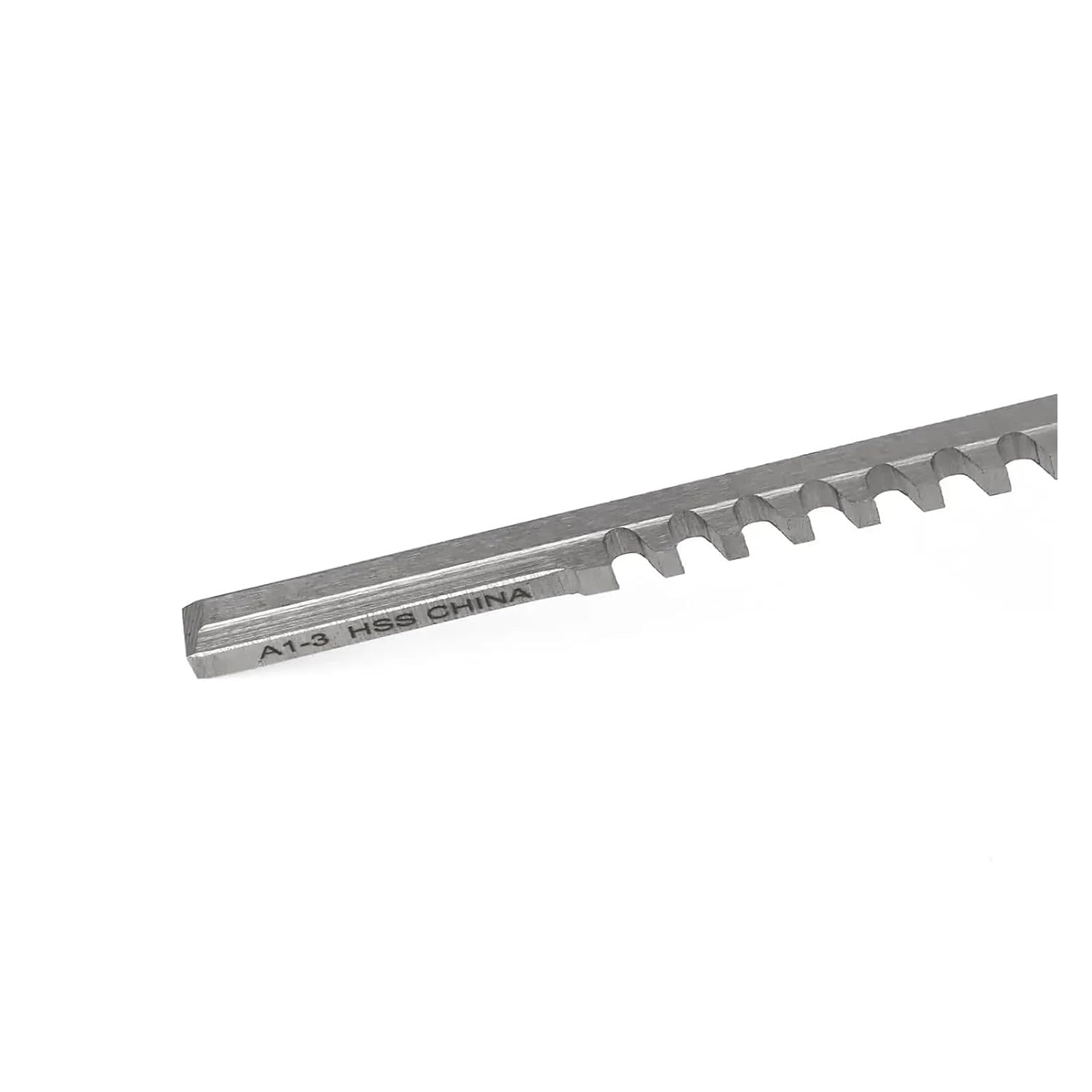

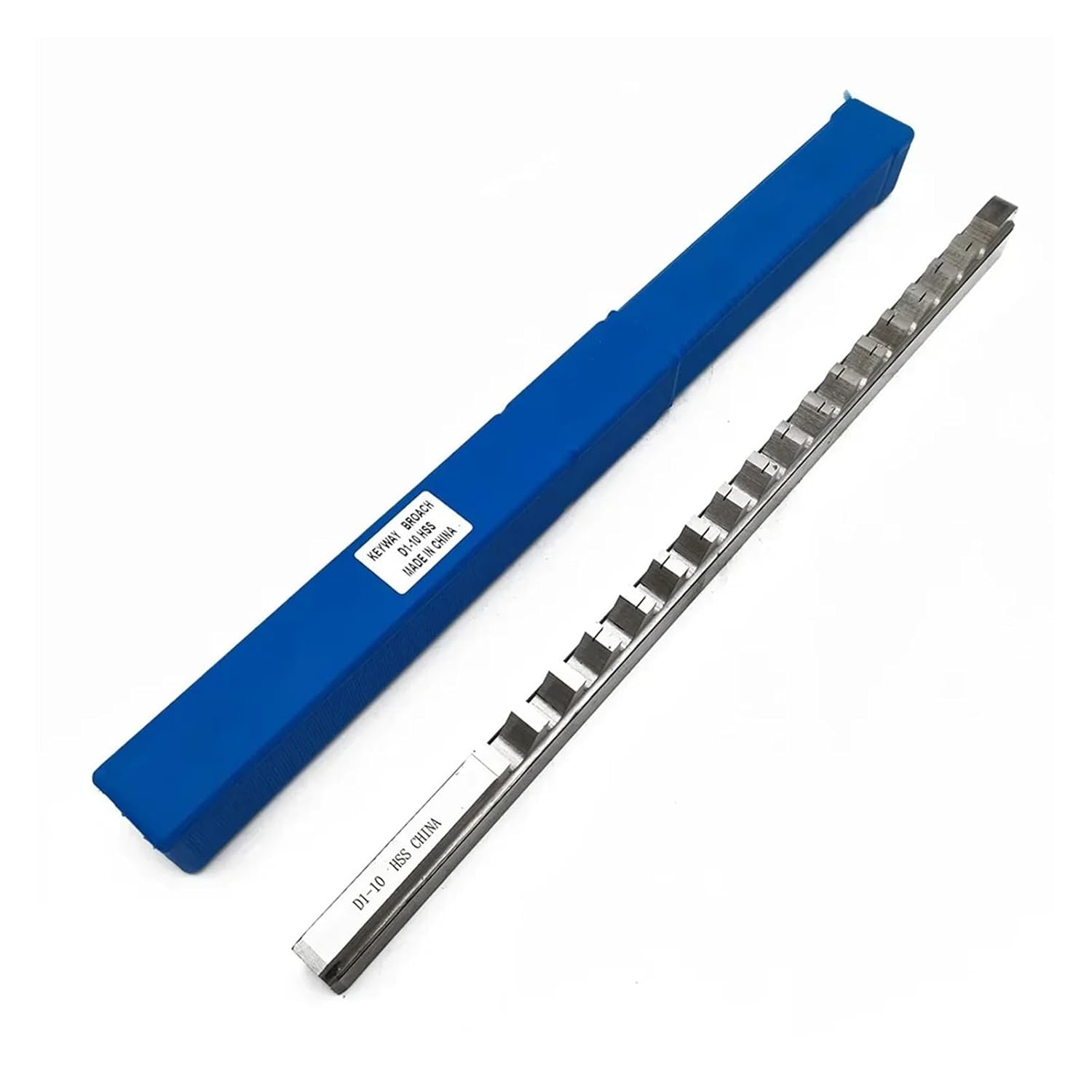

Keyway Broach 2-18mm A1/B1/C1/D1/E1 Push-Type Metric Sized High Speed Steel Keyway Tools for CNC Lathe for Metalworking, Lathe(B1-5mm)

Four big advantage:1: Has a good chip removal effect2: Speed processing and high finishBroach Size Style Correction height(mm) Leading height(mm)Broach Dimensions*(mm) Keyway Width(mm) Length of Cut * min.-max. Shims(pcs)2mm A1 6.2 5.105 3.26X127 b=2.012 13/64 - 1 1/8 0 3mm A1 5.7 4.92 3.26X127 b=3.01 13/64 - 1 1/8 1 4mm B1 10.8 9.66 6.45X171.5 b=4.01 19/64 - 1 11/16 1 5mm B1 10.8 9.66 6.45X171.5 b=5.01 19/64 - 1 11/16 1 5mm C1 16.38 15.15 9.64X298.5 b=5.01 25/64 - 2 1/2 1 6mm C1 16.64 15.02 9.64X298.5 b=6.01 25/64 - 2 1/2 1 8mm C1 15.95 14.62 9.64X298.5 b=8.01 25/64 - 2 1/2 2 10mm D1 23.84 22.3 9.64X298.5 b=10.02 1-6 2 12mm D1 23.63 21.98 9.64X298.5 b=12.02 1-6 2 14mm D1 23.63 21.98 9.64X298.5 b=14.02 1-6 2 16mm E1 24.38 22.82 19.33X394 b=16.02 1-6 3 18mm E1 23.93 22.34 19.33X394 b=18.021 1-6 3

• 1. Our Keyway Broach is made from high-speed steel, ensuring longevity
• 2. Designed with a superior chip removal effect, this Keyway Broach allows for smooth operation and improved efficiency during machining processes
• 3. Available in metric sizes ranging from 2mm to 18mm, our Keyway Broach provides precise cutting dimensions
• 4. Suitable for various keyway widths and depths, the Keyway Broach is for both professional machinists and DIY enthusiasts looking to enhance their machining capabilities
• 5. With minimal shims required for operation, this Keyway Broach maximizes speed processing
