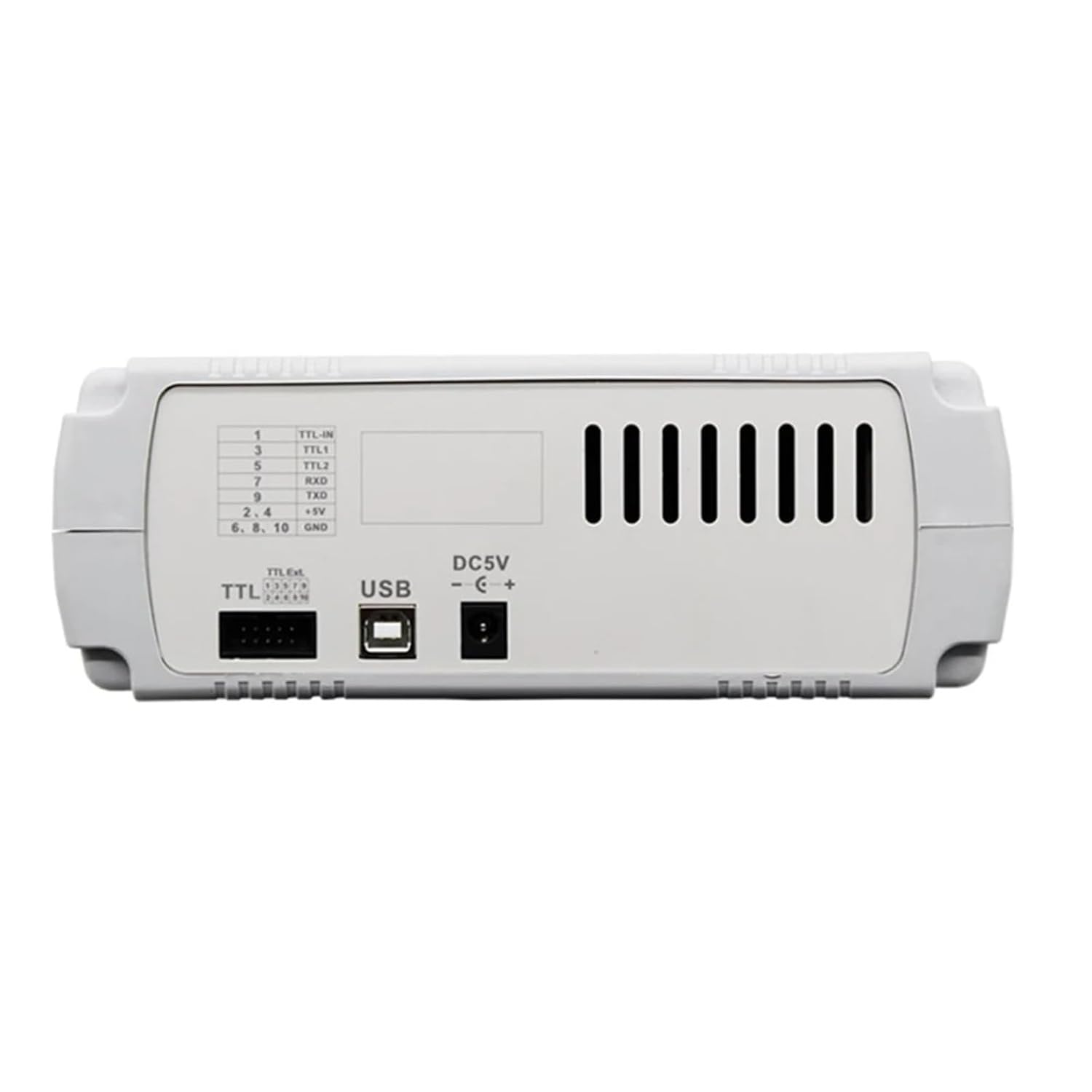

JDS6600 60MHz Dual Channel DDS Function Signal Generator Digital 2-CH Frequency Meter Arbitrary Waveform Pulse Generator(US)

Function GeneratorsDescription:JDS6600-60M Dual-channel Function Signal generator combines multiple functions in one, such as Function Signal Generator, Arbitrary Waveform Generator, Pulse Generator, Sweep, Counter and Frequency Meter, etc.The instrument adopts the Direct Digital Synthesizer(DDS) technology and provides stable, precise, pure and low distortion signals. It's a great testing or measuring instrument for electronics engineers, electronic laboratory, teaching and researching.Feature:1. 320*240 2.4" TFT color display, simultaneously display parameters of CH1 and CH2.2. Use soft silicone keys instead of traditional patch keys, high sensitivity and convenient for operation.3.JDS6600-60M, the maximum sine wave frequency is 60MHz, and the maximum square wave is 25MHz, 266MSa/s sampling rate and 14bits vertical resolution.4. 60 groups of arbitrary wave storage function, memory depth of each group is2048*14bits, can re-call and check custom waveforms, draw arbitrary waveforms.5. Completely independent dual channels output, synchronizing operation and adjustable phase difference.6. Duty-cycle of each channel can be adjusted independently, the adjusting resolution is 0.1%.7. High frequency accuracy and resolution: frequency accuracy up to 10^(-6) magnitude, total range frequency resolution is 0.01uHz.8. High amplitude resolution: the minimum amplitude resolution can 1mV, amplitude range is 2mVpp~20Vpp.9. Sweep function: linear sweep and logarithmic sweep functions; 0.1s-999.9s sweep time; forward, backward and roundtrip sweep directions.10. Pulse trains burst output function: allow the unit output 1~1048575 arbitrary pulse trains.11. Measurement functions: can measure signal frequency, cycle, positive/negative pulse width and duty cycle; 1Hz~100MHz frequency range.12. -9.99V~9.99V DC offset range, offset resolution: 0.01V.13. With digital signal output function, CMOS output range 0~10V.14. Storage feature: can store 100 groups of parameters set by the user and extract at any time.15. Counter function: with DC and AC coupling modes.16. Arbitrary wave editing function: user can edit arbitrary wave on PC and then download to output from the instrument.17. Communication function: the PC can be used to control the instrument.18. output short-circuit protection: all signal output can work 60s under load short-circuit condition.Teachnical Parameters:Sine frequency range: 0~60MHzSquare frequency range: 0~25 MHzTriangle frequency range: 0~25 MHzPulse frequency range: 0~6 MHzTTL digital frequency range: 0~6 MHzArbitrary wave frequency range: 0~6 MHzSquare rise time: 10nSPulse width adjustment range: 25nS - 4000SFrequency accuracy: ±20 ppmFrequency stability: ±1 ppm/3hFrequency characteristicsModelJDS6600-15MJDS6600-30MJDS6600-40MJDS6600-50MJDS6600-60MSine frequency range0~15MHz0~30MHz0~40MHz0~50MHz0~60MHzSquare frequency range0~15MHz0~25MHz0~25MHz0~25MHz0~25MHzTriangle frequency range0~15MHz0~25MHz0~25MHz0~25MHz0~25MHzPulse frequency range0~6MHz0~6MHz0~6MHz0~6MHz0~6MHzTTL digital frequency range0~6MHz0~6MHz0~6MHz0~6MHz0~6MHzArbitrary wave frequency range0~6MHz0~6MHz0~6MHz0~6MHz0~6MHzPulse width adjustment range100nS - 4000S50nS - 4000S40nS - 4000S30nS - 4000S25nS - 4000SSquare wave rise time25nS15nS10nS10nS10nSMinimum frequency resolution0.01uHz(0.00000001Hz)Frequency accuracy±20 ppmFrequency stability±1 ppm/3hWaveform specificationsWaveformtypesSine, square, triangle, pulse (duty-cycle correction, pulse width and cycle time adjustable), arbitrary wave, CMOS, DC level, half-wave, full-wave, pos-ladder, neg-Ladder, noise, exponential rise, exponential fall, tone, cink pulse, lorentz pulse, and 60 kinds user-defined waveforms.Waveform length2048 pointsWaveform sampling rate266 MSa/sWaveform vertical resolution14 bitsSinewaveHarmonicsuppression<;1 MHz); 40dBc(1 MHz~20 MHz)Total harmonicdistortion<;0.8%(20 Hz~20 kHz,0dBm)Square and Pulse waveOvershoot(Square)5%Pulseand Partial sine waveDuty-cycleadjustmentrange0.1 - 99.9%Sawtooth waveLinearity98%(0.01 Hz~10 kHz)Output specificationsSine wave amplitude rangeFrequency10MHz10MHz Frequency30MHz30MHz Frequency2mVpp~20Vpp2mVpp~10Vpp2mVpp~5VppSquare wave,Triangle waveamplitude rangeFrequency10MHz10MHz Frequency25MHz2mVpp~20Vpp2mVpp~5VppAmplitude resolution1 mVAmplitude stability±0.5%/5 hAmplitude flatness±5%(<;10 MHz); ±10%(>10 MHz)Waveform outputOutput impedance50±10%(typical)ProtectionAll signal outputs can work within 60s when the load is short-circuitedDC offsetOffset adjusting rangeOutput Amplitude>2V<;Output Amplitude2V<;Output amplitude0.2V-9.99V~9.99V-2.5V~2.5V-0.25V~0.25VOffset resolution0.01 VPhase specificationsPhase adjusting range0 ~ 359.9°Phase resolution0.1°TTL/COMS OutputLow level<;0.3 VHigh level1 - 10 VLevel rise/fall time20nsExternal measurement functionFrequency meter functionFrequencymeasurementrange1 Hz~100 MHzMeasurement accuracyGate time adjusted between 0.01S~10sCounter functionCounting range0-4294967295Coupled mode2 Coupling modes, DC and ACCounting methodManual operationInput signal voltage range2 20 VppPulse width measurement0.01us (resolution), 20s (MAX measuring time)Period measurement0.01us (resolution), 20s (MAX measuring time)Sweep functionSweep channelCH1 or CH2Sweep typeLinear sweep, logarithmicsweepSweep time0.1s~999.9sSetting rangeArbitrarily set between start point and stop pointsSweep directionForward, backward and round tripBursting functionNumber of pulses1-1048575Burst modeManual burst, CH2 burst, external burst (AC), external burst (DC)General technical parametersDisplay typeDisplay type2.4 inch TFT color Storage and loadQuantity100 groupsPosition00 to 99(extract 00 place data at default boost state)Arbitrary waveQuantity1 to 60, totally 60 groups (default boost 15 groups)InterfaceInterfacemodeUSB to serial interfaceExtensioninterfaceWith TTL level mode serial interface for user secondarydevelopmentCommunicationspeedAdopt standard 115200 bpsProtocolUsing the command line,the protocol is made publicPower supplyVoltage rangeDC 5 V±0.5 VManufacturing processSurface-mount technology, large scale integrated circuit, high reliability, long service lifePrompt toneUsers can turn on or off by setting programOperating characteristicsAll key operations,knob continuous adjustmentEnvironmental<;80%Package Included:1 x DDS Signal Generator1 x CD1 x Power Adapter1 x USB Data Cable1 x BNC-BNC Cable2 x BNC-Clip Cable1 x Instruction ManualOperation interfaceHostcomputersoftwarecontrolinterface==========Battery Included : NoHigh-concerned chemical : NoneModel Number : JDS-6600-60MDisplay Size : 2.9 Inches & UnderDIY Supplies : ElectricalCertification : Single Frequency Range : 0-60MHzSquare Frequency Range : 0-25MHzTriangle Frequency Range : 0-25MHzPulse Frequency Range : 0-6MHzTTL Digital Frequency Range : 0~6 MHzArbitrary Wave Frequency Range : 0~6 MHzSquare Rise Time : 25nSDisplay Size : 2.4 inch TFT Color Power Supply : AC 110-240VChannel : Dual ChannelsType : Digital Signal GeneratorDepth : 2048*14bitsStorage Quantity : 60 groupsCoupling Mode : AC / DCSampling Rate : 266 MSa/sFrequency Measuring Range : 1Hz~100MHz
